Content:
Diffraction limits & principal axes of ellipsoid fitted to diffraction cut-off surface: 3.562 1.0000 0.0000 0.0000 a* 3.455 0.0000 1.0000 0.0000 b* 3.061 0.0000 0.0000 1.0000 c*
Date deposited | Date data collection | Resolution | R, Rfree |
20150508 | 20140422 | 3.20 | 0.2230 0.2810 |
Molprobity (CCP4 7.0 version) summary:
Ramachandran outliers = 0.64 % favored = 96.40 % Rotamer outliers = 28.76 % C-beta deviations = 10 Clashscore = 64.48 RMS(bonds) = 0.0170 RMS(angles) = 1.62 MolProbity score = 3.63 Resolution = 3.20 R-work = 0.2230 R-free = 0.2810
Additional analysis:
Number of waters = 0 <B> (all atoms) = 69.51 ( sd = 32.23 ) for 9733 non-hydrogen atoms <B> (protein) = 69.65 ( sd = 32.17 ) for 9705 non-hydrogen atoms <B> (water) = 0.00 ( sd = 0.00 ) for 0 non-hydrogen atoms <B> (others) = 20.00 ( sd = 0.00 ) for 28 non-hydrogen atoms B min/max (all non-hydrogen atoms) = 15.63 / 309.39 B min/max (protein non-hydrogen atoms) = 15.63 / 309.39 B min/max (water non-hydrogen atoms) = 0.00 / 0.00 B min/max (other non-hydrogen atoms) = 20.00 / 20.00
Molprobity (CCP4 7.0 version) summary:
Ramachandran outliers = 0.88 % favored = 93.92 % Rotamer outliers = 10.51 % C-beta deviations = 2 Clashscore = 8.45 RMS(bonds) = 0.0122 RMS(angles) = 1.64 MolProbity score = 2.64 Resolution = 3.20 R-work = 0.1838 R-free = 0.2431
Additional analysis:
Number of waters = 67 <B> (all atoms) = 79.10 ( sd = 23.93 ) for 9800 non-hydrogen atoms <B> (protein) = 79.29 ( sd = 23.63 ) for 9705 non-hydrogen atoms <B> (water) = 33.67 ( sd = 13.26 ) for 67 non-hydrogen atoms <B> (others) = 118.69 ( sd = 9.33 ) for 28 non-hydrogen atoms B min/max (all non-hydrogen atoms) = 3.85 / 156.82 B min/max (protein non-hydrogen atoms) = 38.60 / 156.82 B min/max (water non-hydrogen atoms) = 3.85 / 72.70 B min/max (other non-hydrogen atoms) = 108.34 / 129.06

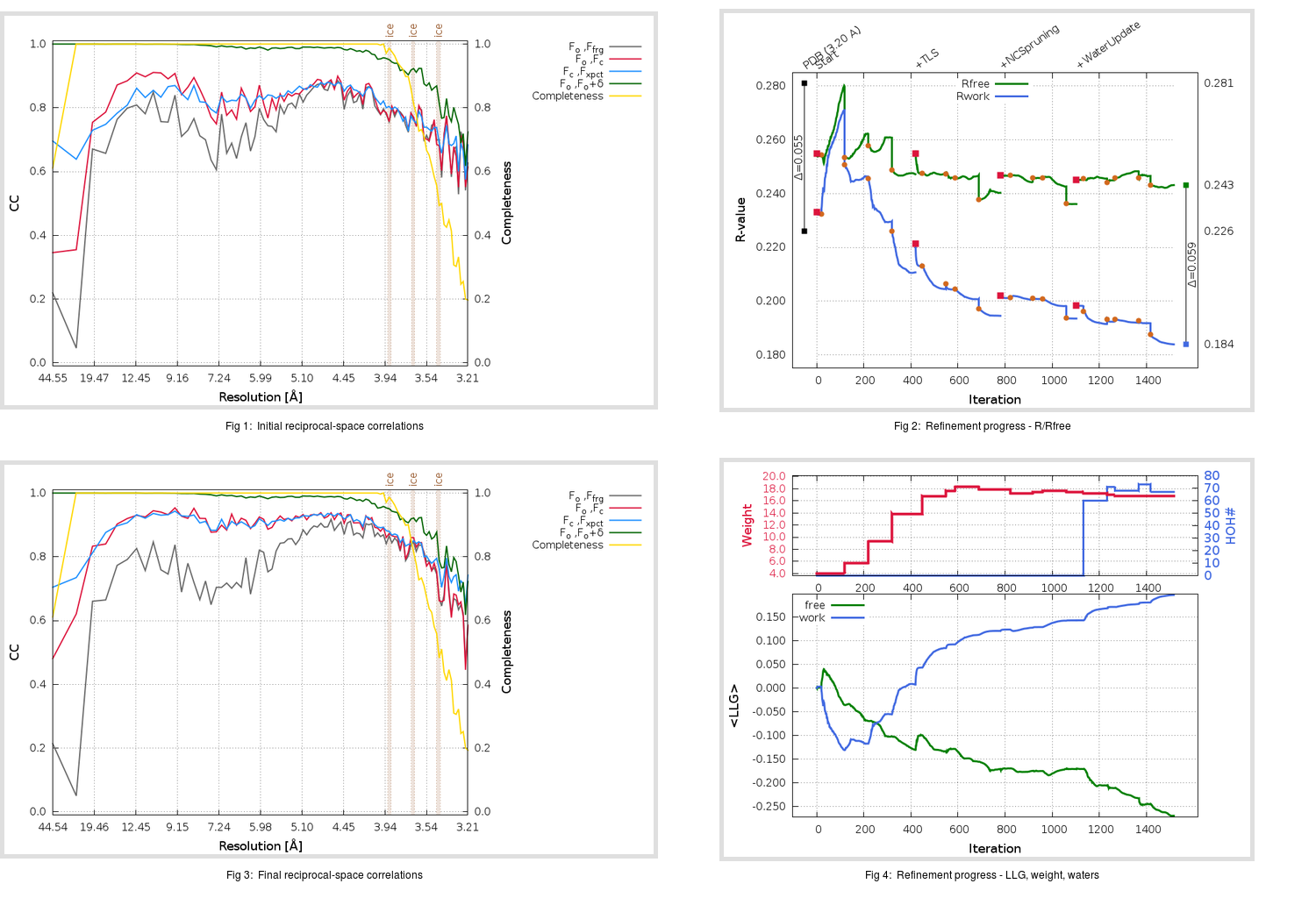

Refinement progression:
Results:
File | Remark |
4ZPV_aB_refine.01_04_refine.pdb.gz | exact refinement commands are in header |
4ZPV_aB_refine.01_04_refine.mtz.gz | including original deposited data and several re-refinement map coefficients |
4ZPV_aB_refine.01_04_BUSTER_model.cif.gz | including any non-standard compound restraints |
4ZPV_aB_refine.01_04_BUSTER_refln.cif.gz |
