Content:
Diffraction limits & principal axes of ellipsoid fitted to diffraction cut-off surface: 1.627 0.9973 0.0000 0.0738 0.998 a* - 0.060 c* 1.653 0.0000 1.0000 0.0000 b* 1.514 -0.0738 0.0000 0.9973 -0.185 a* + 0.983 c*
Date deposited | Date data collection | Resolution | R, Rfree |
20200315 | 20200304 | 1.60 | 0.1760 0.2220 |
Molprobity (CCP4 7.0 version) summary:
Ramachandran outliers = 0.33 % favored = 97.68 % Rotamer outliers = 0.76 % C-beta deviations = 2 Clashscore = 4.86 RMS(bonds) = 0.0134 RMS(angles) = 1.83 MolProbity score = 1.32 Resolution = 1.60 R-work = 0.1760 R-free = 0.2220
Additional analysis:
Number of waters = 335 <B> (all atoms) = 23.22 ( sd = 9.47 ) for 2735 non-hydrogen atoms <B> (protein) = 21.61 ( sd = 8.45 ) for 2370 non-hydrogen atoms <B> (water) = 33.39 ( sd = 9.80 ) for 335 non-hydrogen atoms <B> (others) = 39.47 ( sd = 11.11 ) for 30 non-hydrogen atoms B min/max (all non-hydrogen atoms) = 11.18 / 65.91 B min/max (protein non-hydrogen atoms) = 11.18 / 64.92 B min/max (water non-hydrogen atoms) = 11.93 / 65.91 B min/max (other non-hydrogen atoms) = 22.65 / 61.61
Molprobity (CCP4 7.0 version) summary:
Ramachandran outliers = 0.33 % favored = 98.68 % Rotamer outliers = 0.76 % C-beta deviations = 0 Clashscore = 2.53 RMS(bonds) = 0.0114 RMS(angles) = 1.54 MolProbity score = 1.04 Resolution = 1.60 R-work = 0.1840 R-free = 0.2179
Additional analysis:
Number of waters = 323 <B> (all atoms) = 24.37 ( sd = 8.81 ) for 2723 non-hydrogen atoms <B> (protein) = 22.67 ( sd = 7.26 ) for 2370 non-hydrogen atoms <B> (water) = 35.87 ( sd = 10.17 ) for 323 non-hydrogen atoms <B> (others) = 34.91 ( sd = 10.02 ) for 30 non-hydrogen atoms B min/max (all non-hydrogen atoms) = 11.52 / 78.39 B min/max (protein non-hydrogen atoms) = 11.52 / 60.75 B min/max (water non-hydrogen atoms) = 13.48 / 78.39 B min/max (other non-hydrogen atoms) = 25.44 / 43.89

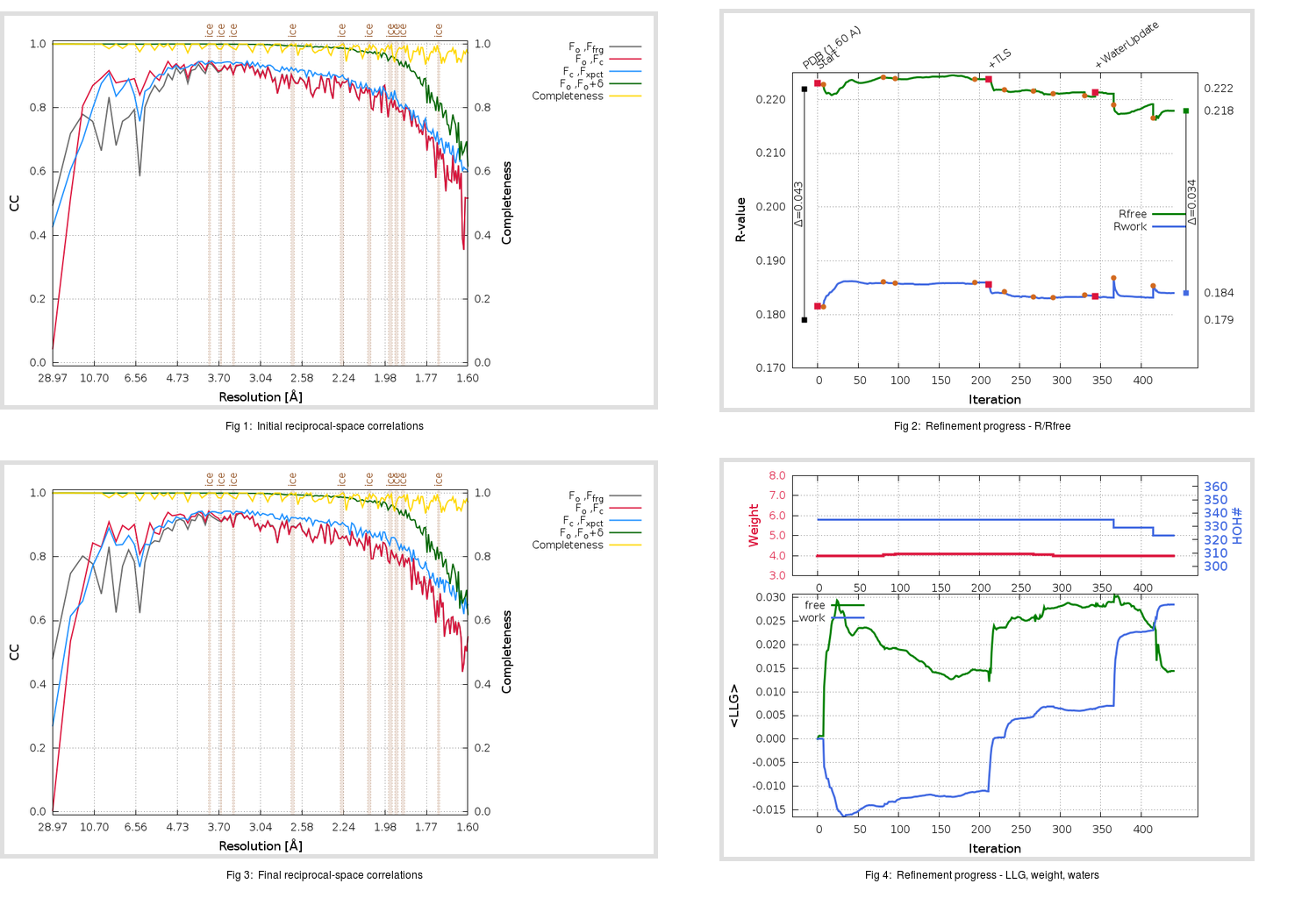

Refinement progression:
Results:
File | Remark |
5REV_aB_refine.01_03_refine.pdb.gz | exact refinement commands are in header |
5REV_aB_refine.01_03_refine.mtz.gz | including original deposited data and several re-refinement map coefficients |
5REV_aB_refine.01_03_BUSTER_model.cif.gz | including any non-standard compound restraints |
5REV_aB_refine.01_03_BUSTER_refln.cif.gz |
