BUSTER example specifying column and flag value for free set reflections

The MTZ file must contain a column containing a specification of the set of reflections used to compute eg. Rfree. By default that column has the name: FreeR_flag.

To select a different column name (for refine versions above 1.11.2) use eg.:

% refine ... ColumnName_FreeR_flag=TEST

In previous releases (refine versions 1.11.2 and below) one also had to specify the allowed names eg.:

% refine  ColumnName_FreeR_flag_allowed=' I[ ]* FreeR_flag| I[ ]* TEST'

Usually the subset of reflections that has a flag value of '0' is called "the free set" and the rest are called "the work set". If one wants to select a different flag value use eg.:

% refine ... BusterFreeFlagValue=1

What are the tell-tale signs of selecting a 'new' free-set?

Lets try on 2fri. Start with these two files:

From running

% mtzdmp 2fri/2fri.mtz > 2fri/2fri.mtzdmp

we see that

  • the column name containg the flag is: FREE, and it
  • has min and max values: 0 and 22, respectively.

First let's see what the Rwork and Rfree values are for these sets by running a MapOnly job for each value of the values 0 to 22:

% for q in $(seq -w 0 22) ; do
%     refine -m 2fri.mtz -p 2fri/2fri.pdb -M MapOnly BusterFreeFlagValue=$q -d ${q} &> ${q}.log &
% done

Since the column name "FREE" is automatically detected as being the column with the FreeR_flag we do not need to specify it explicitly.

When the jobs are finished do:

% grep best ??.log | awk '{print $NF}'|sed -e 's%/% %' > q.dat

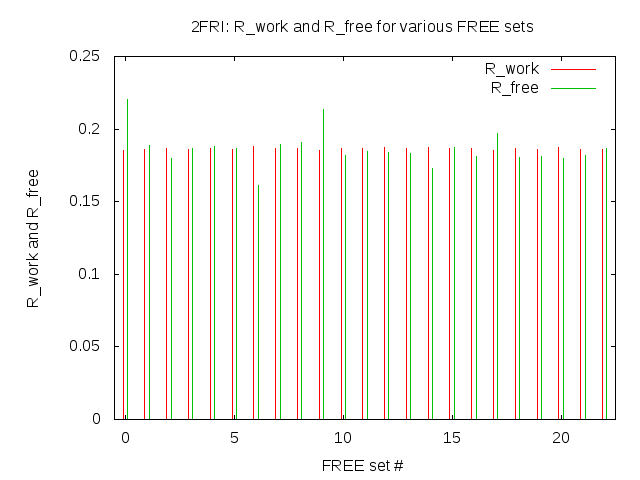

Plot the values using eg. gnuplot to get:


We see only a small variation.

Secondly, what happens if one selects a new free-set?

Let's try running a refinement using the original set (00) and two other sets: 10 and 20.

% for q in 00 10 20; do
%     refine -p 2fri/2fri.pdb -m 2fri/2fri.mtz BusterFreeFlagValue=$q -d run$q  &> run${q}.log &
% done

Use the graph_autobuster_R and plotmtv tools to obtain these plots showing how Rwork and Rfree behave when selecting a 'new' free set:

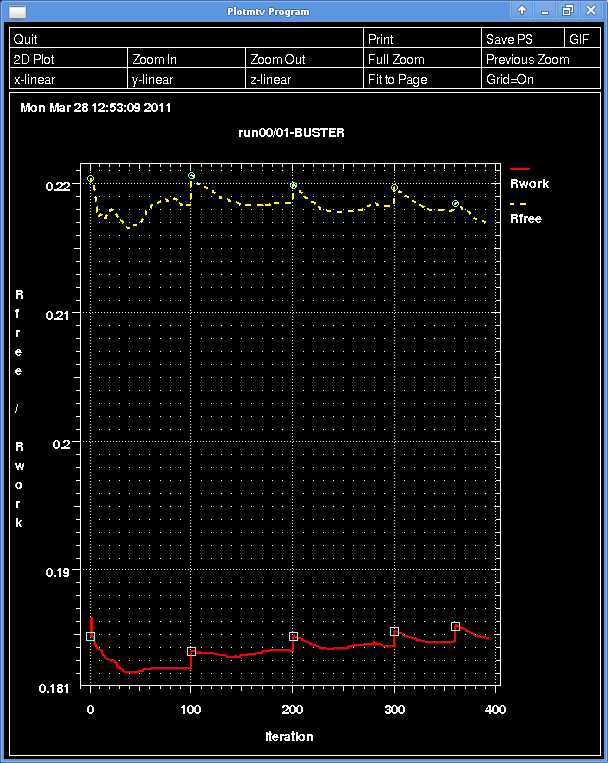

Original 2fri-free00.png

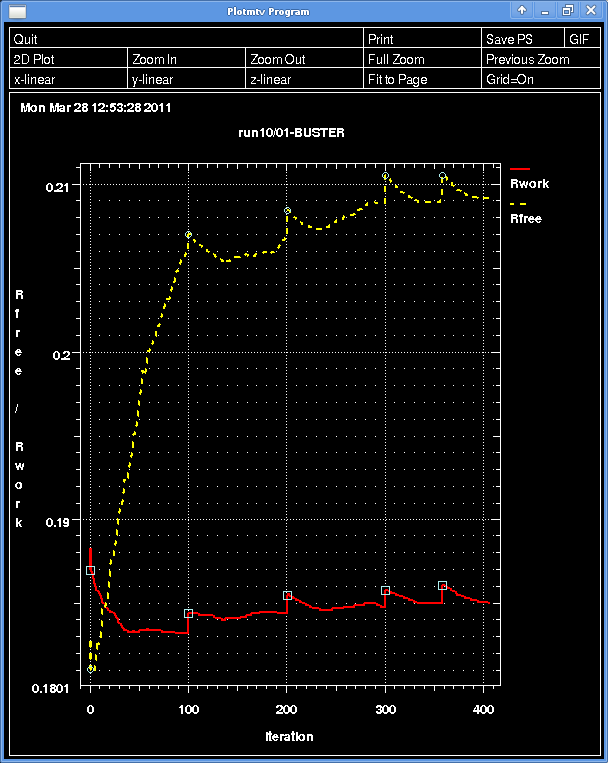

Free set 10 2fri-free10.png

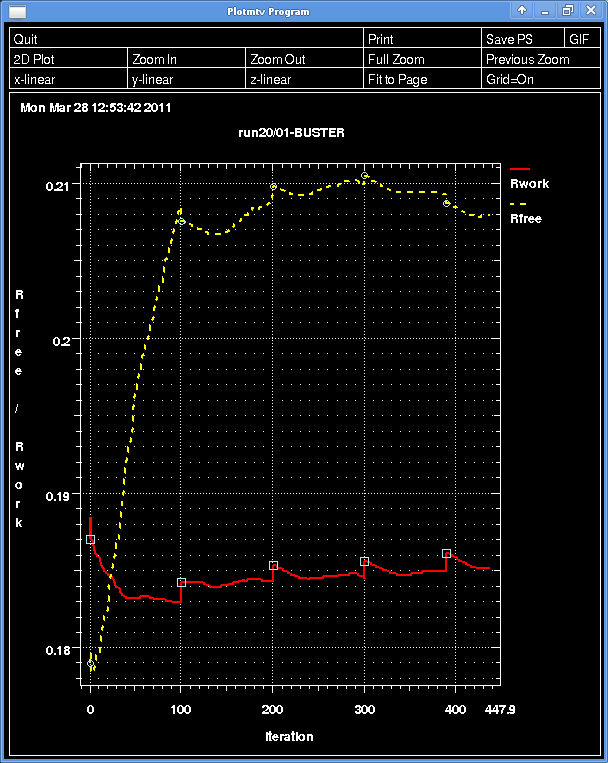

Free set 20 2fri-free20.png

Note how the new sets start off with a Rfree lower than Rwork, while after some refinement, the structure has 'forgotten' the free set and the Rfree value is somewhat larger than Rwork.
